Our experience

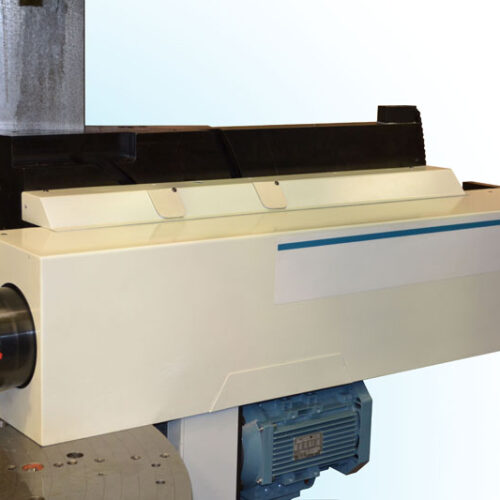

Design, construction and installation on a drilling machine obtained from a vertical lathe of a drilling unit with hydraulic tool locking capable of making radial holes with different positions and inclinations managed by the already existing NUM 1040 CNC. Design and construction of a dedicated electrical cabinet. SPINDLE SPEED: 3000 rpm SPINDLE POWER: 11 kW RADIAL TRAVEL: 1000 mm MAX TILT: ±25° TOOL HOLDER: ISO 50 ...

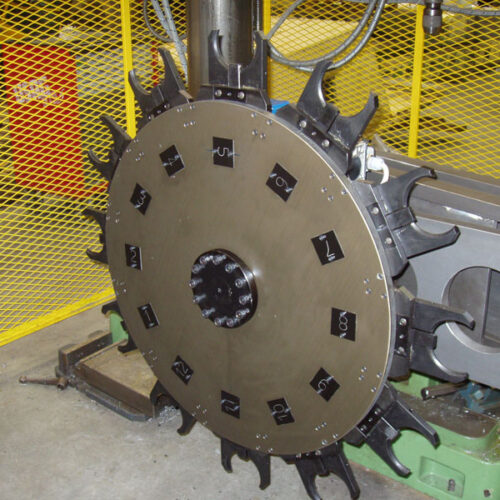

Design, construction and installation of 12-position tool changer for boring machine with irreversible tool locking system. Design and construction of a dedicated electrical system. POSITIONS: 12 TOOL HOLDER: DIN 69871 ISO 50 ROTARING SPEED: 1 pos./s ...

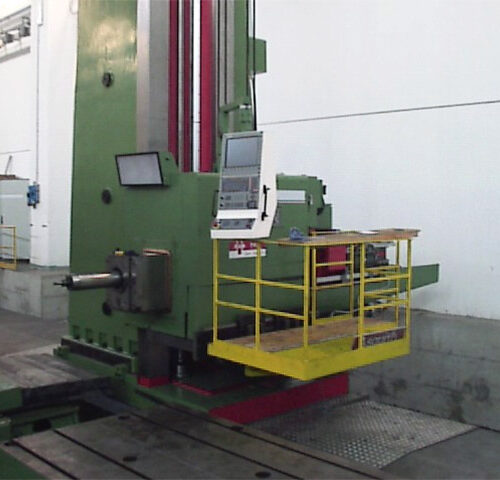

Asquith boring machine, complete mechanical overhaul with grinding of the sliding guides and replacement of metal bellows, overhaul of the hydraulic and hydrostatic support system, painting. New electrical cabinet and on-board system with HEIDENHAIN TNC530 numerical control installation. Addition of automatic rotary table managed by CNC, not originally present on the machine. Y TRAVEL: 5000 mm X TRAVEL: 12000 mm W TRAVEL: 700 mm Z TRAVEL: 1200 mm SPINDLE SPEED: 1500 rpm SPINDLE POWER: 47 kW TABLE DIMENSION: 3000 mm x 2500 mm MAX TABLE LOAD: 50000 kg ...

Stankoimport parallel lathe, mechanical overhaul and grinding of cross carriage slide guides, overhaul of the lubrication system, range change automation, replacement of existing apron with our apron with double anti-backlash pinion, application of spindle and tool protections, painting. New electrical cabinet and machine board system with HEIDENHAIN Manual Plus CNC installation. SPINDLE DIAMETER: 1000 mm Z TRAVEL: 10000 mm MAX SPINDLE SPEED: 600 rpm SPINDLE POWER: 45 kW ...

1 MAJ parallel lathe, mechanical overhaul complete with head, tailstock and cross carriage with application of anti-friction material (biplast) on the sliding guides, original apron replacement with our anti-backlash double pinion apron, new lubrication system. New electrical cabinet, new machine board system, FAGOR 8070 CNC installation. SPINDLE DIAMETER: 1200 mm TURNING DIAMETER: 1500 mm Z TRAVEL: 10000 mm MAX SPINDLE SPEED: 600 rpm SPINDLE POWER: 90 kW ...

Umaro SC27 vertical lathe, complete mechanical overhaul, replacement of trapezoidal screws with RDS screws, replacement of bellows, grinding of crossbar sliding guides and vertical carriages, overhaul of the hydraulic and lubrication system, painting. New electrical cabinet and machine board system, two-channel FAGOR 8070 CNC installation. Design and construction of the perimeter accident prevention. SPINDLE DIAMETER: 2700 mm MAX TURNING DIAMETER: 3000 mm MAX TURNING HEIGHT: 1700 mm MAX SPINDLE LOAD: 20000 kg MAX SPINDLE SPEED: 300 rpm SPINDLE POWER: 90 kW VERTICAL CARRIAGE TRAVEL: 1100mm ...

Kolomna 1563T vertical lathe managed by Siemens 840D bi-channel numerical control. Complete mechanical overhaul, new electrical and hydraulic system. Design, construction and assembly of tool holders for Coromant Capto and the complete perimeter accident prevention X AXIS TRAVEL: 3000 mm Z AXIS TRAVEL: 4200 mm X1 AXIS TRAVEL: 3000 mm Z1 AXIS TRAVEL: 4200 mm CROSSTIE POSITIONING: 4000 mm SPINDLE POWER: 160 kW MAX SPINDLE SPEED: 27 rpm SPINDLE DIAMETER: 6300 mm MAX TURNING DIAMETER: 6500 mm MAX TURNING HEIGHT: 4000 mm MAX SPIDLE LOAD: 28000 kg ...

Pfauter P100L gear hobbing machine managed by Siemens 840C numerical control with absolute positioning of the axes. Completely overhauled in the mechanics, in the hydraulic and electrical parts. The NC software has been completely developed by our company and allows the creation of up to 9 different gears mounted on the same pin in the same cycle, with the possibility of machining also with a single-tooth milling cutter or roughing with insert milling and hob finishing. In the event of a black-out, a hydraulic system intervenes to move the piece and tool away while the NC maintains their synchronism, thus ...

Churchill WM105 gear hobbing machine managed by Fagor 8070 numerical control with absolute positioning of the axes. Completely overhauled in the mechanics, in the hydraulic and electrical parts. The NC software has been completely developed by our company and allows the creation of up to 9 different gears mounted on the same pin in the same cycle, with the possibility of machining also with a single-tooth milling cutter or roughing with insert milling and hob finishing. In the event of a black-out, a hydraulic system intervenes to move the piece and tool away while the NC maintains their synchronism, thus ...

Ravensburg slotting machine completely overhauled mechanically and electrically, managed by numeric control NUM 1040 with customized software. Equipped with a dividing table with specially designed hydraulic locking and 360,000-position encoder. Mechanical tool inversion with pneumatic control and nebulization system for cutting oil. Positioning of the table by means of a cross carriage moved by ball screws and managed by NC, allows to create internal and external toothings. Tilting head to make conical teeth ...
